Brother, you can fight for another five years! Sony notebook replacement SSD hard disk record
Last year installed a desktop, the notebook has been basically in the gray state, but after the children have found that the use of the laptop still needs, after all, the constraints of small units, I put the desktop in the bedroom, so many times the computer can not Boot, basically in a masked sleep state.
However, the notebook has been fighting for five years, and the operation is one minute at a time. The experience of being beaten by the country's younger partners is also very depressing. Re-made N times the system and found that no matter how pure the system is, how little software is installed, the speed of the notebook is still there. Internet search, everyone said that there will be improvement in the replacement of solid state drives. Solid-state drives are indeed a good thing. The desktop system disk is a Samsung solid-state drive. The boot has been stable for 10 seconds, and the response speed has been awesome. The video clips are also in place. Then they start to go to Jingdong and choose the election.
Say a lot of preparatory work before shopping, a variety of screening comparisons, I also in the Samsung, Toshiba, Kingston, Lenovo (what, there is Lenovo? Yes, Baidu know there is now there is a soft article!) Finally, I chose Kingston because I was infamous for the brand. I have a bunch of analysis of SSDs on the Internet. In fact, I think it is generally not wrong to buy the most expensive products within your budget.
Kingston V300 120G SATA3 Solid State Drive 419 yuan Jingdong direct link View Encyclopedia I just want to use it as a system disk, so 120G is enough.
Jingdong's speed has always been fast, and the small county is sent to it every other day. Apart from anything else, the battery is removed, the hard disk back cover is opened, and the hard disk is pushed down (note that it is gently pushed down). Sony’s hard disk has The brackets, it is estimated that other brands are also the same, but I did not remove, remove the screws, replace the SSD, the SSD is thinner than the original mechanical hard drive, Kingston donated a sponge-like material, is to fill this vacant , there is a circle of glue on the hard disk, so that the hard disk into the more stable, push back, the next step, install the system!

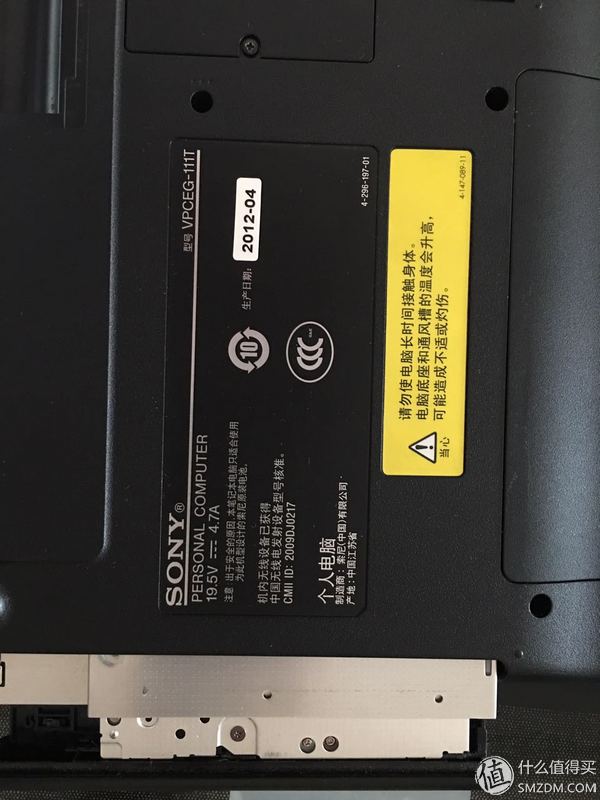

Unscrew the screws on the back cover of the hard disk
In fact, they are all similar, but it seems that some notebooks will have to remove the entire back cover.
Hard drive has a bracket, remove the screws, the hard drive is down
Toshiba's hard drive, 5400 rpm, no wonder the computer is so slow
A piece of tape is given for compactness, and the hard disk is tightly bonded after it is glued.
It is that it comes with glue.
Turn my disc package, history repeats itself, why can not find the system disk every time you install the system! This 64-bit win7 I have engraved do not know how many Zhang ······
Helplessly, the desktop computer is switched on, plugged in the mobile optical drive, download the system, and the recording of the tragedy occurred again. The file name is written with the original image. After the engraving, the Ghost version is actually found. What kind of torture is this? Do you know that my notebook is a picky eater and the Ghost system easily deny it?······
It's time to download it again and burn it again. My great weekend time will be gone.·········
The last toss system is installed, boot, not feel when the 360 ​​entertainment guards have speed, in the boot position is not the same as the original has not moved, Zhuangzhuang 360 test speed, ah 10 seconds, this Money is worth it.
This is the original speed
This is the speed after transformation
Online installation of solid state hard drives must pay attention to whether 4K alignment, or not reflect the speed of solid state drives, the most secure way is to reinstall the system, and do not install the system when the SSD and mechanical hard disk coexistence, in accordance with this instruction, I Solid-state hard drive is considered a one-time pass.
IT-CEO notebook drive hard drive bay 12.7MM aluminum alloy SATA3 support mechanical SSD solid state 36.9 yuan Lynx featured direct link
Suoli notebook optical drive external optical drive box black (moving 12.7mm for /SL-BXU721) 39.9 yuan Jingdong direct link What should I do if I remove the mechanical hard disk? Two options, one is to buy a mobile hard disk box to turn him into a mobile hard disk, the other is to put it into the drive position, and finally I decided to put it in the drive, this is also very simple, buy a hard drive optical drive bay And a drive box, pay attention to be sure to take a good look at the thickness, I was 12.7mm shot into a 9.5mm, but also wasted a few days. Sony's optical drive is a screw fixed, unscrewed, push out the optical drive in advance, or use a needle to click on the hole in the optical drive, pull it out, put the removed hard drive into the bracket, recommend ITCEO this The money, because it comes with a silicone filler, you can fix the hard drive, and some friends bought this stuff without it, they plug their paper, or not beautiful enough, are to buy, it is better to buy a bit in place.
The drive was removed,
Hard disk transferred to tray
Gifted nails
Gifted tools
On the left, three holes are responsible for stabilizing the drive.
When you click on the hole, the optical drive pops up, and then you see it again. The whole thing comes out. Suddenly it feels like a notebook is like a building block.
Removed the drive into the drive box into a USB drive (although many small partners on the drive's demand is small, but how to get someone to find a home ah), power, test, all identify ~ ~
The upgrade took five hundred, but the sense of well-being is that the use of comfort is far more than five hundred dollars. Use Guo Degang's comic dialogue to say that you are holding this several hundred dollars at home and you will enjoy it. Do not come out, you have to be happy to cure your illness with 500 dollars.
Judging from the current situation, there is no problem in the notebook for five years! Small partners who have the same needs as me can also start SSDs and regenerate their notebooks. The effect is really good.
