Black and white beauty - build I7 7700K GTX1070SLI NvmeRAID0 platform installed SHOW
It has been thought that the installation is not only a hobby, but also a form of detail processing. It secretly transmits heaven and earth, and has long been reluctant to install it. Usually, it also writes and writes routers, watching the installation of SHOW. , I have also clicked and couldn't help but wanted a SHOW, did not dare to say to pay tribute to Zhang Aunt, did not dare to say tribute to the gods, can only be used as a type of Virgo tangled emotions, you laugh!
MSI Coral Snake and ASROCK Taiji and Asustek's MARK S are the three motherboards I am most interested in. I prefer black and white, black and white yin and yang. Nowadays, the civilian motherboard is getting closer to the design concept of crafts, color matching, light and shade, and material make me feel more and more confused. This kind of price is quite kind compared to Z270 which is 2K 3K. 1299 sent 8GB of memory, which counts less than 999. Looks like Jingdong's most flat Z270 has 999.
MSI Z270 KRAIT GAMING's Unpacking Family Portrait
The black and white color of this motherboard is the most classic one after MSI red and black. In the past, color matching only existed on the front of the PCB, and now the back side also made a lot of color design.
Interface design USB2.0X2, DVI, HDMI, USB3.1 Type-A and Type-C, USB3.0X2, RJ45 Gigabit Ethernet port, audio interface, from the interface design, the lack of DP, but also the lack of a WIFI network card IPX antenna, but for the price positioning of the main bowl, there is nothing to say
Dismantling
Power Supply Visually Measure 3 Phase IGPU Power, CPU is 6+1 Power Supplies
PMW chip
Three PCIEX16 long slot designs. Dual PCIE3.0X4 M2 slot, audio capacitor, Audio Boost sound card chip, in the bottom edge of the motherboard design an RGB light strip interface.
Z270 PCH chip
System monitoring chip is very common Nuvoton NCT6795D-M, on the left is the Intel I219V Gigabit PHY chip, the actual MAC is in the Z270 PCH, on the right is Niccon's audio capacitor bank and with Audio Boost shield New generation ALC1120 sound card chip.
The bottom two ASM1460 USB3.0 converter chips should serve the left VR BOOST chip. The official website introduction is to optimize the USB link stability and smoothness of VR devices such as HTC VIVO.
USB3.1 uses the ASM2142 second-generation chip. The first generation is the ASM1142. The ASM1543 is a type-C switching chip that is normally used to ensure that the USB3.1 forward and reverse plugs are perfectly compatible.

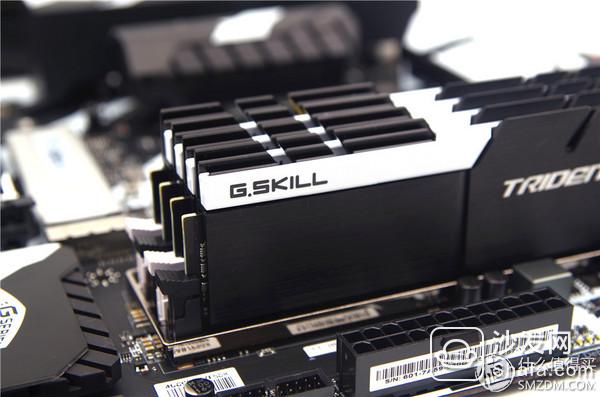

The memory I use is G.SKILL F4-3200C16Q-32GTZKW, 4X8GB, DDR4-3200 CL16 18 18 28 2T 1.35V
SSD I took two LITEON T10 Nvme 480GB SLIVER

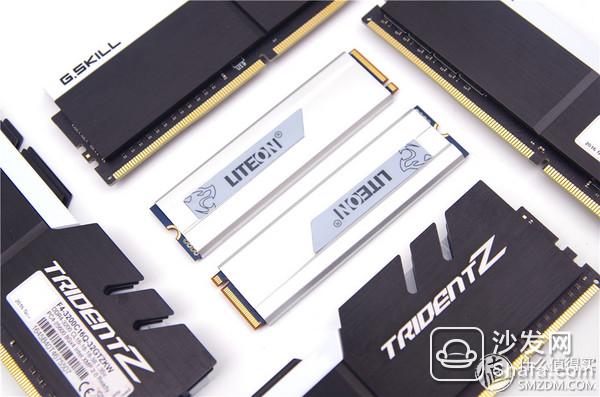

Memory black and white, SSD's silver and white match very good
Look at the effect on the board
Graphics system I used two MSI GTX1070 8GB Dark Dragon and MSI's latest GAMING series HB 2WAY SLI Bridge
The top of the black dragon is the RGB faith light, but not the MSI is DUKE. The back is the black and white MSI logo. The design of the three-fan giant heat dissipation is very similar to the feeling of the INNO 3D ice dragon. In fact, this Tmall has already sent this to 2899, and the price of JD is still strong.
MSI's GAMING HB SLI 2-WAY Bridge with MSI Dragon Totem Lighting
Close-up of two core platforms
It's been a long time and I'm excited. I almost forgot to put I7 7700K on it.
Chassis: PAIMO P66, the most popular tip
Radiator is a passive choice, PHANTEKS PH-TC12DX black and white models, choose this is mainly a 12CM fan, and do not block the memory, here I say, P66 is a compact ATX chassis, its design if the use of 240 drain cold Before the cold row must be installed, then the long dark card of this dark three-fan fan will not be installed, I measured the distance, front 240 cold row + fan, can accommodate a public version of GTX1080! If your video card is longer than the public version of 1080, you only have to choose the rear 120 cooling or air cooling.
Fan chooses Kyushu Fengshen's new TF120 white light
In fact, the PAIMO P66 is really the best balance for organizing wire and space allocation and light efficiency in a very compact volume. You will find this model small in the ATX chassis, and the rear cableway is an artifact.
The power supply uses the XFX XTR750 full-module gold power supply and is also equipped with XFX's TI silver-plated module line product.
After the cover is covered with the cable duct cover, the alignment hole is completely hidden, and behind the SSD bit, it is also possible to route the cable. A Kingston UV400 240GB system disk is connected behind the cover.
The P66's front power supply compartment and top RGB lighting effects are superb
With the P66's RGB lighting effects, the three TF120's white light can be used as a light source for light, with good effect and brightness.
Finally, a 45-degree close-up of the side-by-side glass cover with a good shut-down
Select the top button to switch to red light effect after lighting
In fact, I am not good at peripherals, basically take a look at the election report of Zhang Aunt. See the Logitech G910 and G403 wireless, are RGB.
Overclocking, in fact, this level of the motherboard you want to stabilize the daily 5G is also very exaggerated, I like low-voltage try, direct OVERRIDER mode, V-CORE 1.22V frequency 48 into save, once successfully lit,
4.8G I7 7700K in the CPU-Z test is equivalent to the 6700K default 1.23 times performance, DDR4 3200 memory read and write quite satisfactory, in fact, feel plug two can get better delay parameters, in order to capacity tolerance!
GTX1070 SLI Since the motherboard does not use PLX's SWITCH chip for PCIE expansion, it only has dual X8 speeds.
Scored 10,144 points for the 3DMARK TIME SPY test.

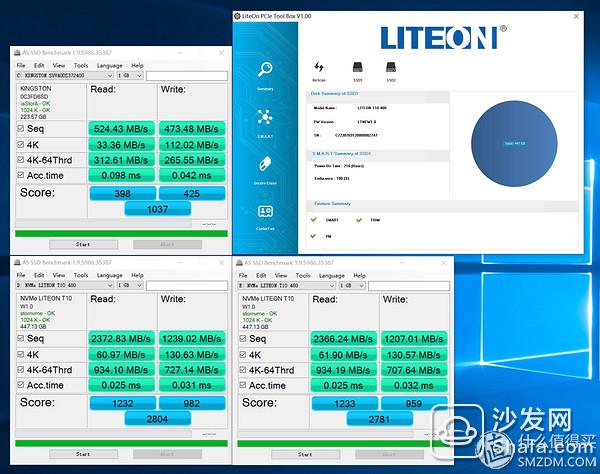

AS SSD BENCHMARK:
Kingston UV400 240GB 1027 points
The LITEON T10 480G dual discs are 2804 and 2781 respectively.
Then talk about the creation of NVME RAID0
The formation of M2 RAID0 is also very simple, directly click on the main interface M2 GENIUS is ON, the following SATA directly into a RAID mode,
Then F7 enters advanced mode to select SETTING. This time MSI's BIOS comes with SSD SECURE EARSE's security erase function is very good, to explain is not only support SATA disk also supports NVME SSD.
Then find the INTEL IRST option directly into it
Select Create Volume RAID0 Mode
Select two LITEON T10 480GB NVME SSDs and click Create
In this way, the two T10s become NVME RAID0, and the boot disk is the Kingston UV400 in SATA mode.
Then go to the main interface, you can not find the NVME disk, because already RAID0.
IRST15.2 driver does not turn on volume writeback by default 4408
IRST15.2 drive open volume write back run 4570
In fact, SSD running points can not explain any problems, but it is clear that Z270's PCH IRST RAID0 is much lower than that of WIN10.
Finally, two dark scenes are presented, thanks for watching
To sum up: SHOW SHOW, cost-effective return
1, I7 7700K In fact, and I7 6700K performance gap is not, the price of 23XX and 21XX bulk, boxed price that is 27XX, just grab the money, I bought a piece, according to I7 6700K bulk 21XX price, 7700K performance increases About 10%, 23XX is still reasonable.
2, Z270 listing price is not strong, and not when the Z170 is listed so fiery, indicating that INTEL's toothpaste leather tactics have been unable to stimulate the market, so Z270 a listing, ASUS MSI Gigabyte are built in the 999 price line to fight, so optimistic about Z270 can enter, the lack of rice party can wait for the Z170 jump house price! In fact, Z270's gimmick is the support of INTEL OPTANE SSD. It's like drawing a cake and seeing whether you are a dreamer or a doer. You have nothing to look for. You may have a low-priced Z170+6700K to sell it!
3, the current mid-range graphics ladder has changed, the cost-effective card selection is nothing more than GTX1050TI 4GB, GTX1060 6GB, RX470D 4GB, RX480 4GB, RX480 8GB, GTX1070 8GB, in fact, the current price of GTX1070 has already broken 3K, personally feel that 1080 total There is a suspense of 1080TI to suppress, once GTX1080TI is released, GTX1080 prices will avalanche, so the GTX1070 in the high-end market is far more robust about GTX1080, and SLI personally feel that only show SHOW, personal use a GTX1070 has been Fully enough for everyday applications at 4K resolution, SLI is not a game that works! Using a single card, the power supply can be suppressed to around 500W.
4, memory, in fact, I use 4 8GB memory is not as good as two 8GB memory read and write speed, there is no need for large-capacity memory, in fact, two 8GB is enough, not to mention the current memory prices are too far out of the price.
5, Z170 Ye Hao, Z270 Ye Hao, PCH comes with M2 SSD RAID0 function speed limit, I strongly recommend the use of M2 NVME single disk can be tested. Because you have to pay twice the price but not get double effectiveness, why bother.
Finally, some of the accessories used in this article are more messy. Some of them are derived from dual 11 and some are derived from black and blue seas.
Memory, I come from the black five, domestic black and white color matching only Jingdong 64GB suit, too expensive is not worthwhile, this 16GB suit is more appropriate, this historical price and the current price is indeed a big gap, but also rising
LITEON T10 is the main control group 5007, Toshiba 15NM MLC flash memory (cluster package), in fact 240G is enough, in a forum to buy spike price 399, for reference!
The power box of Plimic P66E was relatively noisy recently, and it is indeed more reasonable in design. However, the price is not cheap. The price of Jingdong and Tmall is surprisingly uniform. If you want to be cheap, you may only go to Taobao!
MSI's HB SLI Bridge is really good, Jingdong not, only Tmall, the price is not too much worse than the original NVIDIA, mainly to see the color, and like to choose the original NVIDIA
MSI's GTX1070 DUKE 8GB Jingdong and Tmall price difference of 400 yuan, need to compare the price of reference to buy.
Kingston's UV400 240GB, once as long as 399, and now I am also silent, the recent flash memory and memory have been crazy.
heat sink
In fact, if the fan, I prefer the TF120 and An Naimi's white bat, Tmall is also about 89 yuan
Aunt Zhang's products, using Omron shafts, are relatively simple to package. Hand care is very easy to break the hook, it is recommended to buy a hand under the care of the hand, mobile phone holder material in general, other RGB light source and feel OK, Peripheral mainly depends on personal habits and preferences, nothing to say.
Then say that under the CPU, Jingdong's boxed CPU is famous, driving the U market price of Taobao Tmall, i7 7700K listing price is very high
Even if I7 6700K, Jingdong prices are not low,
I am not afraid of death, generally buy loose films, I7 7700K in 23XX, I7 6700K in 21XX, personally feel more reasonable! As for the warranty, it is sure that there is no Jingdong 3 year boxed product. This is what the benevolent sees the wise man.
Interestingly, the Jingdong I7 5820K actually followed the price increase to 29XX, I was drunk, there is demand or go to the forum to close, after all, 6800K came out, 5820K remains large, 23XX 24XX three years boxed spurting There are also many people who shoot.
Finally on the Z270 motherboard: In fact, Jingdong own cheapest Z270 motherboard is 999 price Asus Z270-P, power supply shrink more only 7 phase
MSI's price is not cheap, but for 8GB of memory, it's 950 yuan, and it's still 10 power supplies. This seems to be a bit of an advantage.
In fact, Jingdong seems to see a higher cost of this also a few pieces of 10 power supply motherboard, are 1299 price, which also MSI and ASRock to send 8GB of memory, ASUS Z270-A is definitely a good board I also like it but hard and expensive more than 300 dollars. . . . . No memory demand like ASUS's to put up, there are memory needs or choose MSI and ASRock's 1299 price of the 10 power supply board, converted it will also be 950 dollars, 999 price of the motherboard is not recommended, shrinking too much is not Say nothing yet.
