LED Flam-Proof Lamp, Atex, Ce

Model NO.: NJZ-FEL-B
Color Temperature: 5500k
Emitting Color: White
LED Chips Brand: CREE
Certification: CE, LVD, RoHS, Atex
Driver: Meanwell
Warranty: 5 Years
Ra: >70
Lm/W: 130lm/W
Trademark: NJZ OR OEM
Transport Package: One Product Per One Carton
Specification: 240x200x130mm 336x279x159mm
Origin: China
HS Code: 9405409000
Features

1. ATEX + IECEx Standard
    Could be used in
    Explosive atmospheres, Zone 1&2
    Explosive dust, Zone 21&22
2. Excellent lighting efficacy, up to 110 lumens per Watt (110lm/W)
3. CE, RoHS, IK08
4. AC100-277V, 50/60Hz
5. Heavy duty copper-free aluminum housing
6. Mounting: ceiling type, wall type, floor type

Application

1. Gas Station
2. Storage Facility
3. Manufacturing Plant
4. Marine Loading Terminals
5. Chemical Processing Facility

Specification

Electric Rated Power 20W-150W
Input Voltage        AC90~305V
Input Frequency     50/60Hz
Output Voltage DC36~48V/DC18~24V/DC49~58V/DC18~36V
Power Factor > 0.95
Driver Efficiency ≥  91%
DC output Ripple & Noise <4.8mVP-P/<4.5mVP-P/<200mVP-P
Optical Luminous Flux
(Lumen Output)		 2100Lm~15500Lm
Luminous Efficacy
(Lumens per Watt)		 >100Lm/W
Beam Angle 60°/110°
Correlated Color Temperature (CCT)   5500K
CRI  Ra>70
Environmental Ambient Operating Temperature  -30°C~+50°C
Ambient Operating Humidity 10%~90% RH

Altitude of installation site: <2000m
Atmospheric pressure 86~106KPa
Mechanical Housing Material Heavy-duty Anodized Die Casting Aluminum
Lens Material:      Tempered glass
Mounting Options Ceiling, Wall type, Hanging Chain, Floor type
IP Rating IP66
IK rating IK08
Corrosion-proof Grade WF2

Cable's Spec Φ12.5~20mm

Net Weight 4.6 kg /10.1 lbs--12.2kg/26.9lbs

Dimensions (L×W×H) 20~60W:                          240×200×130 mm       9.4×7.9×5.1in
80~150W:                        335×280×159 mm       13.2×11×6.3in

Gross Weight 5.5kg/12.1lbs--13.5kg/29.8lbs
Packing Dimensions (L×W×H) 20~60W:    327×290×200 mm             12.9×11.4×7.9in
80~150W:   370×362×233 mm
14.6×14.3×9.2in

Warranty 3-year limited system warranty
Lumen Maintenance: 50,000 hours@ L70

High Power LED Spot Light is application:

  Home Lighting, Meeting Room Lighting, Hotel Lighting, School Lighting, Factory Lighting, Hospital Lighting, Indoor & Half Outdoor Lighting, etc. Available Power: 10W High Power LED Spot / 5W High Power LED Spot Bulbs/ 7W LED Bulbs Spot Light.

 Shen Zhen Exceed Electronic CO., LTD" was established in 1999. Exceed Electronic has thrived to be one of the leading manufacturers and exporters of LED products.
Our business range mainly covers LED Light, LED Lamp , High Power LED Light, High Power Big LED Bulb Light, Led Panel Light , Led Tube Light , Eye Protecting LED Table Lamp ,Body Sensor   Led Bed Light , LED Digit Display , LED Ceiling Light , LED Dot Matrix,etc.

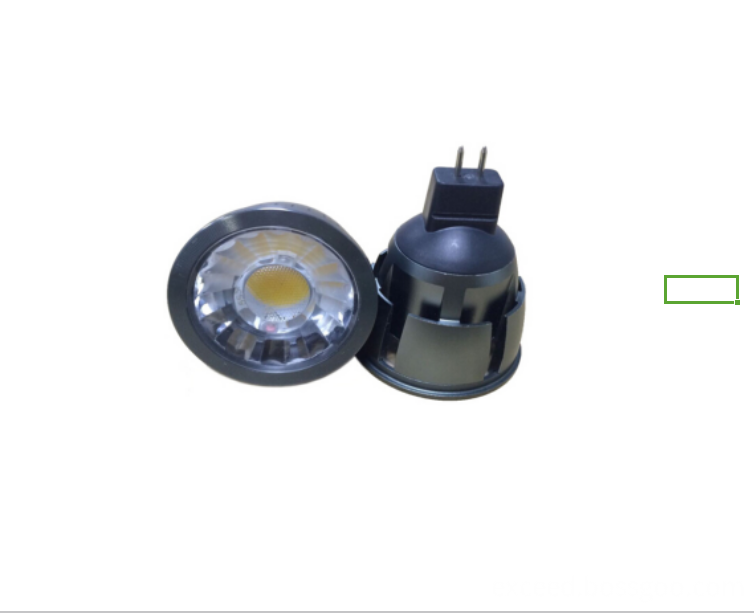

High Power LED Spot  Light Detail:

spot light

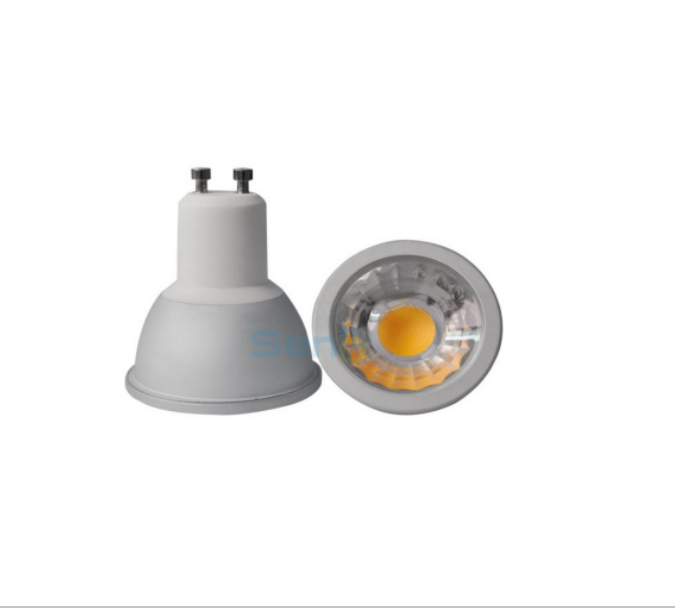

gu10 24v led spot light

Light Source: LED

Item Type: Spot Lights

Input Voltage(V): AC100-240V

Power(W): 5w 6w 7w 10W

Lamp Luminous Flux(lm): 450-650lm

Lamp Luminous Efficiency(lm/w): 95

CRI (Ra>): 80

 Color Temperature(CCT): 3000-3500K; 4000-4500K; 6000-6500K;

Working Temperature(℃): -20 - +40

Working Lifetime(Hour): 30000

Lamp Body Material: Aluminum

Certification: CE, EMC, LVD, RoHS

Base Type:E27/E14/GU10

Place of Origin: Guangdong, China (Mainland)

Brand Name: Exceed

Product Name: High Power Big LED Spot

Power factor: 0.95

IP Grade: IP40

Voltage: AC110-265V  Quality Standerd: ISO 9001 Warranty: 3years

Delivery Time: 7-10days after receipt of advance payment

The Led Spot Light

The Led Spot Light,Epistar LED Spot Light,HIgh Lumen LED Spot Light,High Power LED Spot Light

Shen Zhen Exceed Electronic Co., Ltd. , http://www.exceedlight.com
